Why filter your samples before analysis?
Prefiltering your sample and mobile phase solutions for particulates and microbial growth prior to analysis is critical to preventing column and frit blockage, undue wear on detectors, pumps, valves, injector seals, and abnormally high operating pressures. Non-filtered samples can also lead to non-reproducible analytical results and significant instrument downtime. Filtering every sample before injection is the easiest way to improve your results, to protect your system, and extend column lifetime.
Benefits of Using Chromlab Analytical® Syringe Filters Daily:
• Less system downtime
• More consistent, reproducible results
• Protect Your Column and Equipment
Designed for your application:
• HPLC sample preparation
• Routine QC analysis
• Content uniformity
• Removal of protein precipitates
• Dissolution testing
• Food analysis
• Biofuel analysis
• Environmental samples
Enhanced Quality
No matter in manufacturing or testing, quality is a life of product as principal we are all continuously running after.
Raw material
All the membrane is imported for some leading company who is well known in producing membrane. It is cut into some disc membrane that guarantee exceptional integrity when filtering some sample. Then through into non-gap sealing, virgin medical PP material from CK company is placed to contain all the disc membrane. It has superior performance to prevent leak of sample solvent and can promise membrane area being used in a large filtration area.
QC control
After manufacturing it in shape, we still focus on testing it to judge whether it is OK and using strictly quality controlled system to forbidden shoddy product.
Every 85 in 100 can be sold to our customer in the end, 15 piece is to be died out. The shelf life of packaged product is also monitored and controlled within our warehouses to ensure efficient stock rotation.
Chromlab Analytical® syringe filters are manufactured by state-of-the-art production machines
and must pass a battery of certification methods and tests. Both manufacturing and packaging processes adhere
to the most current quality systems and methods such as:
• ISO
• DIN
• ASTM
Each piece through this system are selected after concerning 5 factor with critical specifications set for:
• Bubble point
• Burst pressure
• Membrane adsorption (protein)
• Flow rate
• UV extractables (by HPLC)
How to select your sample preparation device ?

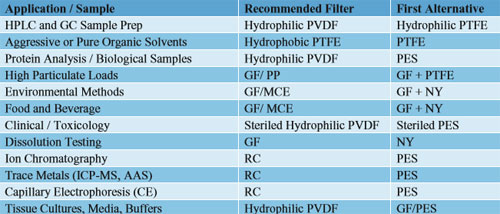

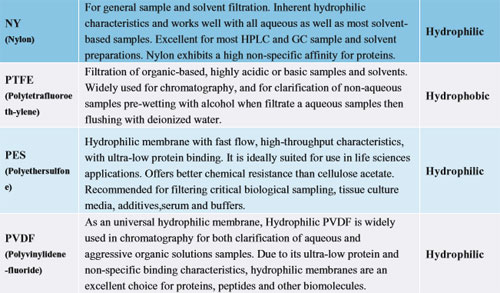

Step 1: Choose the suitable membrane filtration medium Characteristics of samples
Step 2: Choose the suitable diameter depending on the volume of samples

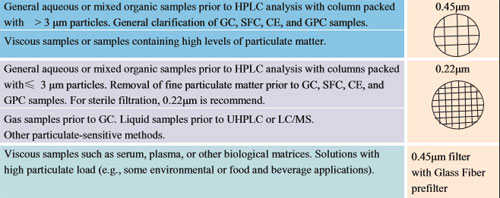

Step 3: Select pore size based on the nature of your sample and chromatographic method
Chromlab Analytical® Syringe Filter
are designed for efficient and cost-effective rapid filtration of almost any solution prior to analysis, and are optimized for superior flow rates and high thoughout
The classic range is available in all of the major membranes including Nylon, Hydrophilic PTFE, Hydrophobic PTFE, PES, MCE and PVDF, which are supplied in 13mm id, 25mm id formats in virgin medical polypropylene housings. |
Features
• Embossed character: Gear edged for easily handing; color coded for easy telling the filter membrane and pore size
• Application Compatibility: Broad range of filtration media meets diverse application needs
• HPLC certified for low levels of UV absorbing extractables
• Sterile: Filters can be purchased pre-sterilized by Gamma radiation and individually packaged |

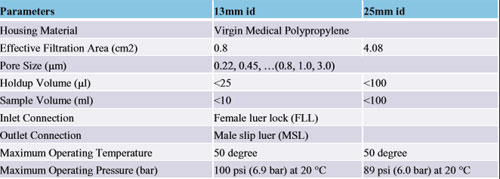

Technical specifications
Core Competition
Quality: Reliable, reproducible, and contaminate-free syringe filter
Delivery: Guarantee 7-10 business days.
OEM service: The unique filter design, with LOGO printing on filter and package customization.
Value-added service: Big account discount, Bidding support.
 |
A: Medical Grade PP Housing
Offers the most inert syringe filter and helps eliminate unwanted secondary interactions with the filter housing
B: Injection molding in one
Offers the most pressure resistance of the syringe
filter, as it is injection molding in one, better than normal Ultrasonically Welded.

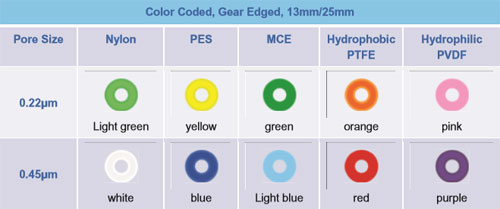

C: Identification
Membrane type and pore size are clearly identified by color coded.
D: Better membrane media
All raw membrane import from famous brand such as
Membrana, GE, Donalson«from German, US or Japan. |

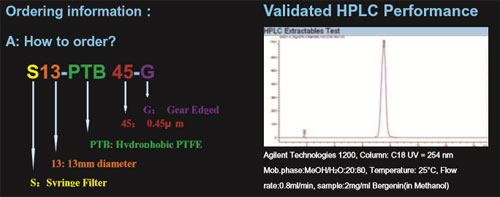

Order Infomation
Filter Media |
Diameter(mm) |
PoreSize(ȝm) |
Package |
Cat. No. |
NY |
13 |
0.22 |
100 |
S13-NY22-G |
13 |
0.45 |
100 |
S13-NY45-G |
25 |
0.22 |
100 |
S25-NY22-G |
25 |
0.45 |
100 |
S25-NY45-G |
MCE |
13 |
0.22 |
100 |
S13-MC22-G |
13 |
0.45 |
100 |
S13-MC45-G |
25 |
0.22 |
100 |
S25-MC22-G |
25 |
0.45 |
100 |
S25-MC45-G |
|
13 |
0.22 |
100 |
S13-PTB22-G |
13 |
0.45 |
100 |
S13-PTB45-G |
25 |
0.22 |
100 |
S25-PTB22-G |
25 |
0.45 |
100 |
S25-PTB45-G |
|
13 |
0.22 |
100 |
S13-PTL22-G |
13 |
0.45 |
100 |
S13-PTL45-G |
25 |
0.22 |
100 |
S25-PTL22-G |
25 |
0.45 |
100 |
S25-PTL45-G |
|
13 |
0.22 |
100 |
S13-PS22-G |
13 |
0.45 |
100 |
S13-PS45-G |
25 |
0.22 |
100 |
S25-PS22-G |
25 |
0.45 |
100 |
S25-PS45-G |
|
13 |
0.22 |
100 |
S13-PVL22-G |
13 |
0.45 |
100 |
S13-PVL45-G |
25 |
0.22 |
100 |
S25-PVL22-G |
25 |
0.45 |
100 |
S25-PVL45-G |
Chromlab Analytical® Catalogue
Membrane Filter
Membrane filter or "membranes are microporous film with specific pore size ratings.Membranes retain particles and microorganisms that exceed their pore ratings by acting as a physical barrier and capturing such particles on the surface of the membrane.
FX Chromlab Analytical
® offers membrane filters in diameters from 13 mm to 293 mm and materials including PES,MCE,Nylon,PVDF,PTFE and Glass Fiber.
| NYLON Membrane Filter |
P2-NYP3 ; |
| PTFE Membrane Filter |
P3-NYP4v |
| PES Membrane Filter |
P4-NYP5 |
| MCE Membrane Filter |
P5-NYP6 |
| Microbiology Test Membrane Filter |
P6-NYP7 |
| Absorbent Pad |
P7 |
| PVDF Membrane Filter |
P8 |
| CA Membrane Filter |
P8-NYP9 |
| PC Membrane Filter |
P9-NYP11 |
| Glass Fiber Filter |
P11-NYP13 |
Chromlab Analytical® Nylon Membrane Filter
• Hydrophilic
• High protein binding capacity
• Ideal for Bacterial and Particulate removal
• Compatible with aqueous and alcoholic solutions and solvents; suitable for HPLC
Cat. NCat. Noo. |
Filter Medium |
PoreSize(ȝm) |
Diameter(mm) |
Qty/pack |
M013-NY010 |
NYLON |
0.1 |
13 |
200 |
M025-NY010 |
NYLON |
0.1 |
25 |
100 |
M037-NY010 |
NYLON |
0.1 |
37 |
100 |
M047-NY010 |
NYLON |
0.1 |
47 |
50 |
M090-NY010 |
NYLON |
0.1 |
90 |
25 |
M142-NY010 |
NYLON |
0.1 |
142 |
25 |
M293-NY010 |
NYLON |
0.1 |
293 |
25 |
M013-NY022 |
NYLON |
0.22 |
13 |
200 |
M025-NY022 |
NYLON |
0.22 |
25 |
100 |
M037-NY022 |
NYLON |
0.22 |
37 |
100 |
M047-NY022 |
NYLON |
0.22 |
47 |
50 |
M090-NY022 |
NYLON |
0.22 |
90 |
25 |
M142-NY022 |
NYLON |
0.22 |
142 |
25 |
M293-NY022 |
NYLON |
0.22 |
293 |
25 |
M013-NY045 |
NYLON |
0.45 |
13 |
200 |
M025-NY045 |
NYLON |
0.45 |
25 |
100 |
M037-NY045 |
NYLON |
0.45 |
37 |
100 |
M047-NY045 |
NYLON |
0.45 |
47 |
50 |
M090-NY045 |
NYLON |
0.45 |
90 |
25 |
M142-NY045 |
NYLON |
0.45 |
142 |
25 |
M293-NY045 |
NYLON |
0.45 |
293 |
25 |
M013-NY080 |
NYLON |
0.8 |
13 |
200 |
M025-NY080 |
NYLON |
0.8 |
25 |
100 |
M037-NY080 |
NYLON |
0.8 |
37 |
100 |
M047-NY080 |
NYLON |
0.8 |
47 |
50 |
M090-NY080 |
NYLON |
0.8 |
90 |
25 |
M142-NY080 |
NYLON |
0.8 |
142 |
25 |
M293-NY080 |
NYLON |
0.8 |
293 |
25 |
M013-NY100 |
NYLON |
1.0 |
13 |
200 |
M025-NY100 |
NYLON |
1.0 |
25 |
100 |
M037-NY100 |
NYLON |
1.0 |
37 |
100 |
M047-NY100 |
NYLON |
1.0 |
47 |
50 |
M090-NY100 |
NYLON |
1.0 |
90 |
25 |
M142-NY100 |
NYLON |
1.0 |
142 |
25 |
M293-NY100 |
NYLON |
1.0 |
293 |
25 |
M013-NY300 |
NYLON |
3.0 |
13 |
200 |
M025-NY300 |
NYLON |
3.0 |
25 |
100 |
M037-NY300 |
NYLON |
3.0 |
37 |
100 |
M047-NY300 |
NYLON |
3.0 |
47 |
50 |
M090-NY300 |
NYLON |
3.0 |
90 |
25 |
M142-NY300 |
NYLON |
3.0 |
142 |
25 |
M293-NY300 |
NYLON |
3.0 |
293 |
25 |
M013-NY500 |
NYLON |
5.0 |
13 |
200 |
M025-NY500 |
NYLON |
5.0 |
25 |
100 |
M037-NY500 |
NYLON |
5.0 |
37 |
100 |
M047-NY500 |
NYLON |
5.0 |
47 |
50 |
M090-NY500 |
NYLON |
5.0 |
90 |
25 |
M142-NY500 |
NYLON |
5.0 |
142 |
25 |
M293-NY500 |
NYLON |
5.0 |
293 |
25 |
Chromlab Analytical® PTFE Membrane Filter
• PTFE membrane with supporting layer polyester or polypropylene
• Suitable for applications involving aggressive organic solvents, strong acids,
and alkalis
• Hydrophobic nature of the membrane has applications for air and gas sterilization
• High temperature resistance
Cat. No |
Filter Medium |
PoreSize(ȝm) |
Diameter(mm) |
Qty/pack |
M013-PTB010 |
Hydrophobic PTFE |
0.1 |
13 |
200 |
M025-PTB010 |
Hydrophobic PTFE |
0.1 |
25 |
100 |
M037-PTB010 |
Hydrophobic PTFE |
0.1 |
37 |
100 |
M047-PTB010 |
Hydrophobic PTFE |
0.1 |
47 |
50 |
M090-PTB010 |
Hydrophobic PTFE |
0.1 |
90 |
25 |
M142-PTB010 |
Hydrophobic PTFE |
0.1 |
142 |
25 |
M293-PTB010 |
Hydrophobic PTFE |
0.1 |
293 |
25 |
M013-PTB022 |
Hydrophobic PTFE |
0.22 |
13 |
200 |
M025-PTB022 |
Hydrophobic PTFE |
0.22 |
25 |
100 |
M037-PTB022 |
Hydrophobic PTFE |
0.22 |
37 |
100 |
M047-PTB022 |
Hydrophobic PTFE |
0.22 |
47 |
50 |
M090-PTB022 |
Hydrophobic PTFE |
0.22 |
90 |
25 |
M142-PTB022 |
Hydrophobic PTFE |
0.22 |
142 |
25 |
M293-PTB022 |
Hydrophobic PTFE |
0.22 |
293 |
25 |
M013-PTB045 |
Hydrophobic PTFE |
0.45 |
13 |
200 |
M025-PTB045 |
Hydrophobic PTFE |
0.45 |
25 |
100 |
M037-PTB045 |
Hydrophobic PTFE |
0.45 |
37 |
100 |
M047-PTB045 |
Hydrophobic PTFE |
0.45 |
47 |
50 |
M090-PTB045 |
Hydrophobic PTFE |
0.45 |
90 |
25 |
M142-PTB045 |
Hydrophobic PTFE |
0.45 |
142 |
25 |
M293-PTB045 |
Hydrophobic PTFE |
0.45 |
293 |
25 |
M013-PTB100 |
Hydrophobic PTFE |
1.0 |
13 |
200 |
M025-PTB100 |
Hydrophobic PTFE |
1.0 |
25 |
100 |
M037-PTB100 |
Hydrophobic PTFE |
1.0 |
37 |
100 |
M047-PTB100 |
Hydrophobic PTFE |
1.0 |
47 |
50 |
M090-PTB100 |
Hydrophobic PTFE |
1.0 |
90 |
25 |
M142-PTB100 |
Hydrophobic PTFE |
1.0 |
142 |
25 |
M293-PTB100 |
Hydrophobic PTFE |
1.0 |
293 |
25 |
M013-PTB300 |
Hydrophobic PTFE |
3.0 |
13 |
200 |
M025-PTB300 |
Hydrophobic PTFE |
3.0 |
25 |
100 |
M037-PTB300 |
Hydrophobic PTFE |
3.0 |
37 |
100 |
M047-PTB300 |
Hydrophobic PTFE |
3.0 |
47 |
50 |
M090-PTB300 |
Hydrophobic PTFE |
3.0 |
90 |
25 |
M142-PTB300 |
Hydrophobic PTFE |
3.0 |
142 |
25 |
M293-PTB300 |
Hydrophobic PTFE |
3.0 |
293 |
25 |
M013-PTB500 |
Hydrophobic PTFE |
5.0 |
13 |
200 |
M025-PTB500 |
Hydrophobic PTFE |
5.0 |
25 |
100 |
M037-PTB500 |
Hydrophobic PTFE |
5.0 |
37 |
100 |
M047-PTB500 |
Hydrophobic PTFE |
5.0 |
47 |
50 |
M090-PTB500 |
Hydrophobic PTFE |
5.0 |
90 |
25 |
M142-PTB500 |
Hydrophobic PTFE |
5.0 |
142 |
25 |
M293-PTB500 |
Hydrophobic PTFE |
5.0 |
293 |
25 |
Chromlab Analytical® PES Membrane Filter
• Inherently hydrophilic
• Low protein binding
• Good chemical compatibility
• Superior thermo stability
Cat. No |
Filter Medium |
PoreSize(ȝm) |
Diameter(mm) |
Qty/pack |
M013-PS005 |
PES |
0.05 |
13 |
200 |
M025-PS005 |
PES |
0.05 |
25 |
100 |
M037-PS005 |
PES |
0.05 |
37 |
100 |
M047-PS005 |
PES |
0.05 |
47 |
50 |
M090-PS005 |
PES |
0.05 |
90 |
25 |
M142-PS005 |
PES |
0.05 |
142 |
25 |
M013-PS010 |
PES |
0.1 |
293 |
200 |
M025-PS010 |
PES |
0.1 |
13 |
100 |
M037-PS010 |
PES |
0.1 |
25 |
100 |
M047-PS010 |
PES |
0.1 |
37 |
50 |
M090-PS010 |
PES |
0.1 |
47 |
25 |
M142-PS010 |
PES |
0.1 |
90 |
25 |
M013-PS022 |
PES |
0.22 |
142 |
200 |
M025-PS022 |
PES |
0.22 |
293 |
100 |
M037-PS022 |
PES |
0.22 |
13 |
100 |
M047-PS022 |
PES |
0.22 |
25 |
50 |
M090-PS022 |
PES |
0.22 |
37 |
25 |
M142-PS022 |
PES |
0.22 |
47 |
25 |
M013-PS045 |
PES |
0.45 |
90 |
200 |
M025-PS045 |
PES |
0.45 |
142 |
100 |
M037-PS045 |
PES |
0.45 |
293 |
100 |
M047-PS045 |
PES |
0.45 |
13 |
50 |
M090-PS045 |
PES |
0.45 |
25 |
25 |
M142-PS045 |
PES |
0.45 |
37 |
25 |
M013-PS065 |
PES |
0.45 |
47 |
200 |
M025-PS065 |
PES |
0.65 |
90 |
100 |
M037-PS065 |
PES |
0.65 |
142 |
100 |
M047-PS065 |
PES |
0.65 |
293 |
50 |
M090-PS065 |
PES |
0.65 |
13 |
25 |
M142-PS065 |
PES |
0.65 |
25 |
25 |
M013-PS100 |
PES |
0.65 |
37 |
200 |
M025-PS100 |
PES |
1.0 |
47 |
100 |
M037-PS100 |
PES |
1.0 |
90 |
100 |
M047-PS100 |
PES |
1.0 |
142 |
50 |
M090-PS100 |
PES |
1.0 |
293 |
25 |
M142-PS100 |
PES |
1.0 |
13 |
25 |
Chromlab Analytical® MCE Membrane Filter
• A mixture of nitrocellulose and cellulose acetate
• Naturally hydrophilic
• Available in both supported or non-NYsupported
• High porosity provides superior flow rates
• Ideal for use in lateral flow assays and dot/slot blotting
Cat. No |
Filter Medium |
PoreSize(ȝm) |
Diameter(mm) |
Qty/pack |
M013-MC022 |
MCE |
0.22 |
13 |
200 |
M025-MC022 |
MCE |
0.22 |
25 |
100 |
M037-MC022 |
MCE |
0.22 |
37 |
50 |
M047-MC022 |
MCE |
0.22 |
47 |
50 |
M090-MC022 |
MCE |
0.22 |
90 |
25 |
M142-MC022 |
MCE |
0.22 |
142 |
25 |
M293-MC022 |
MCE |
0.22 |
293 |
25 |
M013-MC045 |
MCE |
0.45 |
13 |
200 |
M025-MC045 |
MCE |
0.45 |
25 |
100 |
M037-MC045 |
MCE |
0.45 |
37 |
50 |
M047-MC045 |
MCE |
0.45 |
47 |
50 |
M090-MC045 |
MCE |
0.45 |
90 |
25 |
M142-MC045 |
MCE |
0.45 |
142 |
25 |
M293-MC045 |
MCE |
0.45 |
293 |
25 |
M013-MC080 |
MCE |
0.8 |
13 |
200 |
M025-MC080 |
MCE |
0.8 |
25 |
100 |
M037-MC080 |
MCE |
0.8 |
37 |
50 |
M047-MC080 |
MCE |
0.8 |
47 |
50 |
M090-MC080 |
MCE |
0.8 |
90 |
25 |
M142-MC080 |
MCE |
0.8 |
142 |
25 |
M293-MC080 |
MCE |
0.8 |
293 |
25 |
M013-MC100 |
MCE |
1.0 |
13 |
200 |
M025-MC100 |
MCE |
1.0 |
25 |
100 |
M037-MC100 |
MCE |
1.0 |
37 |
50 |
M047-MC100 |
MCE |
1.0 |
47 |
50 |
M090-MC100 |
MCE |
1.0 |
90 |
25 |
M142-MC100 |
MCE |
1.0 |
142 |
25 |
M293-MC100 |
MCE |
1.0 |
293 |
25 |
M013-MC300 |
MCE |
3.0 |
13 |
200 |
M025-MC300 |
MCE |
3.0 |
25 |
100 |
M037-MC300 |
MCE |
3.0 |
37 |
50 |
M047-MC300 |
MCE |
3.0 |
47 |
50 |
M090-MC300 |
MCE |
3.0 |
90 |
25 |
M142-MC300 |
MCE |
3.0 |
142 |
25 |
M293-MC300 |
MCE |
3.0 |
293 |
25 |
M013-MC500 |
MCE |
5.0 |
13 |
200 |
M025-MC500 |
MCE |
5.0 |
25 |
100 |
M037-MC500 |
MCE |
5.0 |
37 |
50 |
M047-MC500 |
MCE |
5.0 |
47 |
50 |
M090-MC500 |
MCE |
5.0 |
90 |
25 |
M142-MC500 |
MCE |
5.0 |
142 |
25 |
M293-MC500 |
MCE |
5.0 |
293 |
25 |
Chromlab Analytical® Microbiology Test Membrane Filter(MCE
• Available in white and black
• Gridded or non-gridded Individual pack, pre-sterilized
• Standard for microbiological analysis of water, waste water, and • beverages.
| |
Filter Medium |
PoreSize(ȝm) |
Diameter (mm) |
Qty/pack |
| MCE Membrane Filter, White, Gridded, Sterile, Individually packed |
M025-MC022-GWS |
MCE |
0.22 |
25 |
100 |
M037-MC022-GWS |
MCE |
0.22 |
37 |
100 |
M047-MC022-GWS |
MCE |
0.22 |
47 |
100 |
M025-MC045-GWS |
MCE |
0.45 |
25 |
100 |
M037-MC045-GWS |
MCE |
0.45 |
37 |
100 |
M047-MC045-GWS |
MCE |
0.45 |
47 |
100 |
M025-MC080-GWS |
MCE |
0.8 |
25 |
100 |
M037-MC080-GWS |
MCE |
0.8 |
37 |
100 |
M047-MC080-GWS |
MCE |
0.8 |
47 |
100 |
M025-MC100-GWS |
MCE |
1.0 |
25 |
100 |
M037-MC100-GWS |
MCE |
1.0 |
37 |
100 |
M047-MC100-GWS |
MCE |
1.0 |
47 |
100 |
M025-MC300-GWS |
MCE |
3.0 |
25 |
100 |
M037-MC300-GWS |
MCE |
3.0 |
37 |
100 |
M047-MC300-GWS |
MCE |
3.0 |
47 |
100 |
MCE Membrane Filter, Black, Gridded, Sterile, Individually packed |
M025-MC045-GBS |
MCE |
0.45 |
25 |
100 |
M037-MC045-GBS |
MCE |
0.45 |
37 |
100 |
M047-MC045-GBS |
MCE |
0.45 |
47 |
100 |
M025-MC080-GBS |
MCE |
0.8 |
25 |
100 |
M037-MC080-GBS |
MCE |
0.8 |
37 |
100 |
M047-MC080-GBS |
MCE |
0.8 |
47 |
100 |
Chromlab Analytical® Absorbent Pad
• Pure cellulose pad will not inhibit any bacterial grow.
• Available non-sterile or sterilized by gamma irradiation.
• Individually packed for pre-sterilized
• Customized diameter is available
Cat. No.. |
Description |
Diameter(mm) |
Qty/pack |
M047-APN |
Non-sterile Absorbent Pad |
47 |
100 |
M047-APS |
Sterile Absorbent Pad, individually packed |
47 |
100 |
M050-APN |
Non-sterile Absorbent Pad |
50 |
100 |
M050-APS |
Sterile Absorbent Pad, individually packed |
50 |
100 |
M015050-APD |
Petri-Pad dish, 55×15mm,with absorbent pad, sterile |
50 |
200 |
Chromlab Analytical® PVDF Membrane Filter
• Wide chemical compatibility
• Excellent mechanical properties
• High temperature capabilities
• Low extractable levels
Cat. No. |
Filter Medium |
PoreSize(ȝm) |
Diameter(mm) |
Qty/pack |
M013-PVB022 |
PVDF |
0.22 |
13 |
200 |
M025-PVB022 |
PVDF |
0.22 |
25 |
100 |
M037-PVB022 |
PVDF |
0.22 |
37 |
100 |
M047-PVB022 |
PVDF |
0.22 |
47 |
50 |
M090-PVB022 |
PVDF |
0.22 |
90 |
25 |
M142-PVB022 |
PVDF |
0.22 |
142 |
25 |
M293-PVB022 |
PVDF |
0.22 |
293 |
25 |
M013-PVB045 |
PVDF |
0.45 |
13 |
200 |
M025-PVB045 |
PVDF |
0.45 |
25 |
100 |
M037-PVB045 |
PVDF |
0.45 |
37 |
100 |
M047-PVB045 |
PVDF |
0.45 |
47 |
50 |
M090-PVB045 |
PVDF |
0.45 |
90 |
25 |
M142-PVB045 |
PVDF |
0.45 |
142 |
25 |
M293-PVB045 |
PVDF |
0.45 |
293 |
25 |
Chromlab Analytical® CA Membrane Filter
• Hydrophilic
• Very low protein binding capacity
• High physical strength
• Strength and dimension stability
Cat. No |
Filter Medium |
PoreSize(ȝm) |
Diameter(mm) |
Qty/pack |
M013-CA022 |
Cellulose Acetate |
0.22 |
13 |
200 |
M025-CA022 |
Cellulose Acetate |
0.22 |
25 |
100 |
M037-CA022 |
Cellulose Acetate |
0.22 |
37 |
100 |
M047-CA022 |
Cellulose Acetate |
0.22 |
47 |
50 |
M090-CA022 |
Cellulose Acetate |
0.22 |
90 |
25 |
M142-CA022 |
Cellulose Acetate |
0.22 |
142 |
25 |
M293-CA022 |
Cellulose Acetate |
0.22 |
293 |
25 |
M013-CA045 |
Cellulose Acetate |
0.45 |
13 |
200 |
M025-CA045 |
Cellulose Acetate |
0.45 |
25 |
100 |
M037-CA045 |
Cellulose Acetate |
0.45 |
37 |
100 |
M047-CA045 |
Cellulose Acetate |
0.45 |
47 |
50 |
M090-CA045 |
Cellulose Acetate |
0.45 |
90 |
25 |
M142-CA045 |
Cellulose Acetate |
0.45 |
142 |
25 |
M293-CA045 |
Cellulose Acetate |
0.45 |
293 |
25 |
M013-CA080 |
Cellulose Acetate |
0.8 |
13 |
200 |
M025-CA080 |
Cellulose Acetate |
0.8 |
25 |
100 |
M037-CA080 |
Cellulose Acetate |
0.8 |
37 |
100 |
M047-CA080 |
Cellulose Acetate |
0.8 |
47 |
50 |
M090-CA080 |
Cellulose Acetate |
0.8 |
90 |
25 |
M142-CA080 |
Cellulose Acetate |
0.8 |
142 |
25 |
M293-CA080 |
Cellulose Acetate |
0.8 |
293 |
25 |
M013-CA300 |
Cellulose Acetate |
3.0 |
13 |
200 |
M025-CA300 |
Cellulose Acetate |
3.0 |
25 |
100 |
M037-CA300 |
Cellulose Acetate |
3.0 |
37 |
100 |
M047-CA300 |
Cellulose Acetate |
3.0 |
47 |
50 |
M090-CA300 |
Cellulose Acetate |
3.0 |
90 |
25 |
M142-CA300 |
Cellulose Acetate |
3.0 |
142 |
25 |
M293-CA300 |
Cellulose Acetate |
3.0 |
293 |
25 |
Chromlab Analytical® Polycarbonate PC Membrane Filter
• Precise pore sizes and pore distribution for absolute filtration and separation
• Excellent chemical resistance and thermal stability
• Smooth glass-like surface with cylindrical pores for maximum particulate capture
• Optically transparent in most pore sizes
Cat. No |
Filter Medium |
PoreSize(ȝm) |
Diameter(mm) |
Qty/pack |
M013-PC005 |
PC |
0.05 |
13 |
100 |
M025-PC005 |
PC |
0.05 |
25 |
100 |
M037-PC005 |
PC |
0.05 |
37 |
100 |
M047-PC005 |
PC |
0.05 |
47 |
100 |
M090-PC005 |
PC |
0.05 |
90 |
30 |
M142-PC005 |
PC |
0.05 |
142 |
25 |
M293-PC005 |
PC |
0.05 |
293 |
25 |
M013-PC010 |
PC |
0.1 |
13 |
100 |
M025-PC010 |
PC |
0.1 |
25 |
100 |
M037-PC010 |
PC |
0.1 |
37 |
100 |
M047-PC010 |
PC |
0.1 |
47 |
100 |
M090-PC010 |
PC |
0.1 |
90 |
30 |
M142-PC010 |
PC |
0.1 |
142 |
25 |
M293-PC010 |
PC |
0.1 |
293 |
25 |
M013-PC020 |
PC |
0.2 |
13 |
100 |
M025-PC020 |
PC |
0.2 |
25 |
100 |
M037-PC020 |
PC |
0.2 |
37 |
100 |
M047-PC020 |
PC |
0.2 |
47 |
100 |
M090-PC020 |
PC |
0.2 |
90 |
30 |
M142-PC020 |
PC |
0.2 |
142 |
25 |
M293-PC020 |
PC |
0.2 |
293 |
25 |
M013-PC040 |
PC |
0.4 |
13 |
100 |
M025-PC040 |
PC |
0.4 |
25 |
100 |
M037-PC040 |
PC |
0.4 |
37 |
100 |
M047-PC040 |
PC |
0.4 |
47 |
100 |
M090-PC040 |
PC |
0.4 |
90 |
30 |
M142-PC040 |
PC |
0.4 |
142 |
25 |
M293-PC040 |
PC |
0.4 |
293 |
25 |
M013-PC080 |
PC |
0.8 |
13 |
100 |
M025-PC080 |
PC |
0.8 |
25 |
100 |
M037-PC080 |
PC |
0.8 |
37 |
100 |
M047-PC080 |
PC |
0.8 |
47 |
100 |
M090-PC080 |
PC |
0.8 |
90 |
30 |
M142-PC080 |
PC |
0.8 |
142 |
25 |
M293-PC080 |
PC |
0.8 |
293 |
25 |
M013-PC100 |
PC |
1.0 |
13 |
200 |
M025-PC100 |
PC |
1.0 |
25 |
100 |
M037-PC100 |
PC |
1.0 |
37 |
100 |
M047-PC100 |
PC |
1.0 |
47 |
100 |
M090-PC100 |
PC |
1.0 |
90 |
30 |
M142-PC100 |
PC |
1.0 |
142 |
25 |
M293-PC100 |
PC |
1.0 |
293 |
25 |
M013-PC300 |
PC |
3.0 |
13 |
100 |
M025-PC300 |
PC |
3.0 |
25 |
100 |
M037-PC300 |
PC |
3.0 |
37 |
100 |
M047-PC300 |
PC |
3.0 |
47 |
100 |
M090-PC300 |
PC |
3.0 |
90 |
30 |
M142-PC300 |
PC |
3.0 |
142 |
25 |
M293-PC300 |
PC |
3.0 |
293 |
25 |
M013-PC500 |
PC |
5.0 |
13 |
100 |
M025-PC500 |
PC |
5.0 |
25 |
100 |
M037-PC500 |
PC |
5.0 |
37 |
100 |
M047-PC500 |
PC |
5.0 |
47 |
100 |
M090-PC500 |
PC |
5.0 |
90 |
30 |
M142-PC500 |
PC |
5.0 |
142 |
25 |
M293-PC500 |
PC |
5.0 |
293 |
25 |
M013-PC800 |
PC |
8.0 |
13 |
100 |
M025-PC800 |
PC |
8.0 |
25 |
100 |
M037-PC800 |
PC |
8.0 |
37 |
100 |
M047-PC800 |
PC |
8.0 |
47 |
100 |
M090-PC800 |
PC |
8.0 |
90 |
30 |
M142-PC800 |
PC |
8.0 |
142 |
25 |
M293-PC800 |
PC |
8.0 |
293 |
25 |
Note˖Other sizes and pore sizes available upon request
Chromlab Analytical® Glass Fiber(GF) Membrane Filter
Chromlab Analytical® Glass fiber filters are manufactured from 100% borosilicate glass. These depth filters combine fast flow rate with high loading capacity&retention of fine particulates. The small diameter fibers give glass fiber filter media superior efficiency and dirt holding to cellulose and synthetic media.
• Made of borosilicate glass fiber without binders or with binder
• Stability at high temperatures: It keeps its properties up to 500 ºC and 180 ºC for Grade GF10
• Usable as Pre-fi lter for membranes to prevent the membranes from silting up
• Large surface area provides an outstanding retention capacity.
• High flow speed and high permeability to air
• Reduce filtration costs and premature clogging when filtering difficult-to-filter or highly contaminated solutions.
• Excellent wet strength for easy handling and filter integrity.
Cat. No. |
Description |
Qty/pack |
| M021 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:21 (mm) |
100 |
| M024 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:24 (mm) |
100 |
| M025 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:25 (mm) |
100 |
| M037 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:37(mm) |
100 |
| M042 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:42.5(mm) |
100 |
| M047 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:47(mm) |
100 |
| M050 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:50(mm) |
100 |
| M055 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:55(mm) |
100 |
| M070 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:70(mm) |
100 |
| M090 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:90(mm) |
100 |
| M110 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:110(mm) |
100 |
| M125 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:125(mm) |
100 |
| M142 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:142(mm) |
100 |
| M150 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), Diameter:150(mm) |
100 |
| M810 -GFA016 |
Glass Fiber Filter, Binder free, Pore:1.6(pm), 8 x 10
inches |
100 |
| |
|
|
| M021-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:21 (mm) |
100 |
| M024-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:24 (mm) |
100 |
| M025-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:25 (mm) |
100 |
| M037-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:37(mm) |
100 |
| M042-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:42.5(mm) |
100 |
| M047-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:47(mm) |
100 |
| M050-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:50(mm) |
100 |
| M055-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:55(mm) |
100 |
| M070-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:70(mm) |
100 |
| M090-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:90(mm) |
25 |
| M110-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:110(mm) |
25 |
| M125-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:125(mm) |
25 |
| M142-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:142(mm) |
25 |
| M150-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), Diameter:150(mm) |
25 |
| M810-GFB100 |
Glass Fiber Filter, Binder free, Pore:1.0(pm), 8 x 10 inches |
25 |
| |
|
|
| M021-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2(pm), Diameter:21 (mm) |
100 |
| M024-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2(pm), Diameter:24 (mm) |
100 |
| M025-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2pm), Diameter:25 (mm) |
100 |
| M037-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2(pm), Diameter:37(mm) |
100 |
| M042-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2(pm), Diameter:42.5(mm) |
100 |
| M047-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2(pm), Diameter:47(mm) |
100 |
| M050-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2(pm), Diameter:50(mm) |
100 |
| M055-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2(pm), Diameter:55(mm) |
100 |
| M070-GFC120 |
Glass Fiber Filter, Binder free, Pore:1.2(pm), Diameter:70(mm) |
100 |
| M090-GFC120 |
Glass Fiber Filter, Binder free, Pore: 1.2 (pm), Diameter:90(mm) |
100 |
| M110-GFC120 |
Glass Fiber Filter, Binder free, Pore: 1.2 (pm), Diameter:110(mm) |
100 |
| M125-GFC120 |
Glass Fiber Filter, Binder free, Pore: 1.2 (pm), Diameter:125(mm) |
100 |
| M142-GFC120 |
Glass Fiber Filter, Binder free, Pore: 1.2 (pm), Diameter:142(mm) |
100 |
| M150-GFC120 |
Glass Fiber Filter, Binder free, Pore: 1.2 (pm), Diameter:150(mm) |
100 |
| M810-GFC120 |
Glass Fiber Filter, Binder free, Pore: 1.2 (pm),8 x 10 inches |
100 |
| |
|
|
| M021-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:21 (mm) |
100 |
| M024-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:24 (mm) |
100 |
| M025-GFD270 |
Glass Fiber Filter, Binder free, Pore: 2.7(pm), Diameter:25 (mm) |
100 |
| M037-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:37(mm) |
100 |
| M042-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:42.5 (mm) |
100 |
| M047-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:47(mm) |
100 |
| M050-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:50(mm) |
100 |
| M055-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:55(mm) |
100 |
| M070-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:70(mm) |
100 |
| M090-GFD270 |
Glass Fiber Filter, Binder free, Pore:2.7(pm), Diameter:90(mm) |
25 |
| M110-GFD270 |
Glass Fiber Filter, Binder free, Pore: 2.7 (pm), Diameter:110(mm) |
25 |
| M125-GFD270 |
Glass Fiber Filter, Binder free, Pore: 2.7(pm), Diameter:125(mm |
25 |
| M142-GFD270 |
Glass Fiber Filter, Binder free, Pore: 2.7 (pm), Diameter:142(mm) |
25 |
| M150-GFD270 |
Glass Fiber Filter, Binder free, Pore: 2.7 (pm), Diameter:150(mm |
25 |
| M810-GFD270 |
Glass Fiber Filter, Binder free, Pore: 2.7 (pm), 8 x 10 inches |
25 |
| |
|
|
| M021-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7(pm), Diameter:21 (mm) |
100 |
| M024-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7(pm), Diameter:24(mm) |
100 |
| M025-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7(pm), Diameter:25(mm) |
100 |
| M037-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7 (pm), Diameter:37(mm) |
100 |
| M042-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7 (pm), Diameter:42.5(mm) |
100 |
| M047-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7(pm), Diameter:47(mm) |
100 |
| M050-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7(pm), Diameter:50(mm) |
100 |
| M055-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7(pm), Diameter:55(mm) |
100 |
| M070-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7(pm), Diameter:70(mm) |
100 |
| M090-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7 (pm), Diameter:90(mm) |
25 |
| M110-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7 (pm), Diameter:110(mm |
25 |
| M125-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7 (pm), Diameter:125(mm |
25 |
| M142-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7 (pm), Diameter:142(mm) |
25 |
| M150-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7 (pm), Diameter:150(mm) |
25 |
| M810-GFF070 |
Glass Fiber Filter, Binder free, Pore: 0.7 (pm), 8 x 10 inches |
25 |
Note˖Other sizes available upon request
Related Products
Syringe Filter
Sterile syringe filter
Plastic Vacuum Filtration
Glass Multiple Vacuum Filtration Systems
Autosampler vials
|
