Polyethylene Glycol (PEG) Phases
Abel offers three types of PEG columns: AB-InoWax, AB-FFAP a nd AB-CarboWax 20M.
These three types of columns have various applications bas ed on the characteristics of the PEG stationary phases.

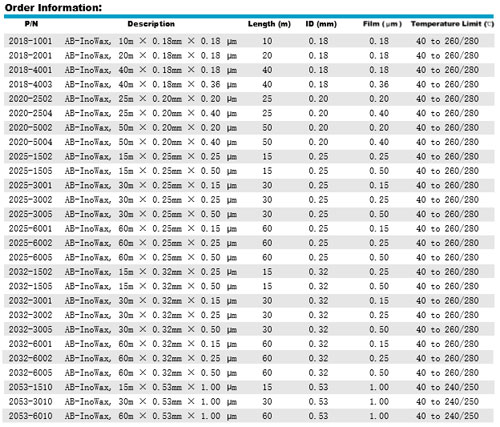

AB-Ino Wax
• Bonded and crosslinked, Polyethylene glycol (PEG)
• Solvent rinsable
• Highest temperature limits of bonded PEG phases
• Polar phase, equivalent to USP phase G16
• Wide applications of polar solvent analysis in food, pharmaco, cosmetics, petrochemical industries
Similar Phases: HP-INNOWax, DB-WAX, DB-WAXetr, SupelcoWAX 10, CP-WAX 52 CB, CB-WAX, Stablilwax,
BP-20, 007-CW, AT-Wax, Rtx-Wax, ZB-Wax, HP-20M

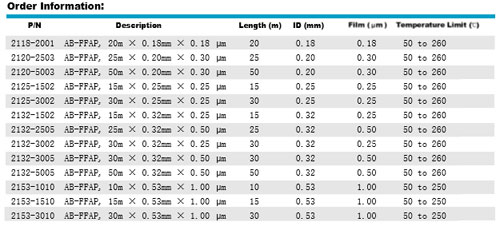

AB-FFAP
• Nitroterephthalic acid modified Polyethylene glycol (PEG)
• Bonded and crosslinked
• Solvent rinsable ·High temperature limit
• Polar phase, equivalent to USP phase G35
• Designed for the analysis of volatile fatty acids and phenols
Similar Phases: HP-FFAP, DB-FFAP, CB-WAX 58 (FFAP) CB, Stabilwax-DA, BP-21, 007-CW, AT-100

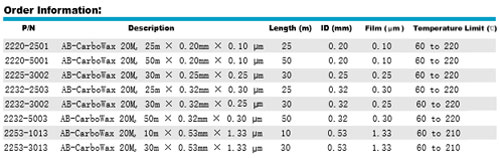

AB-CarboWax 20M
• Polyethylene glycol (PEG), MW 20,000
• Non-bonded non-crosslinked phase
• Polar phase, equivalent to USP phase G16
• Replacement of packed columns with Carbowax 20M modified
>
Similar Phases: HP-20M,Carbowax 20M
